Product Description
Shelf LED Digital Bar Sizes

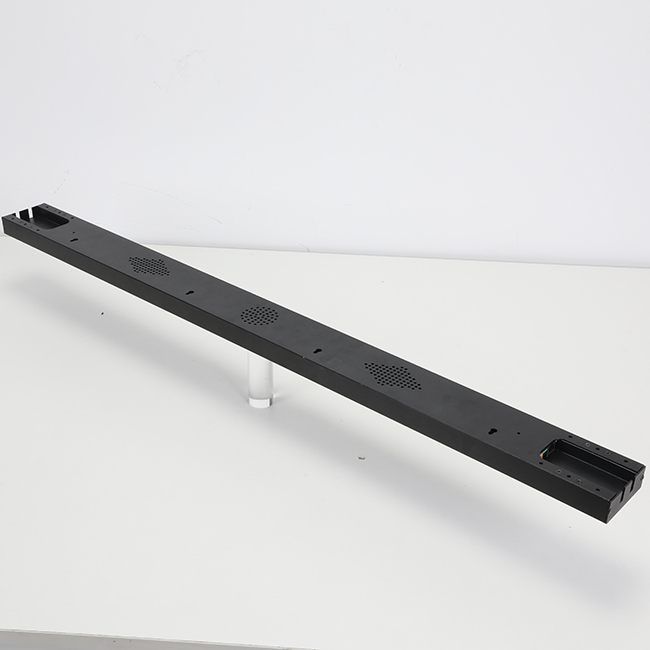

Shelf LED SMD Display Bar
Small Pixel Pitch 1.2mm LED Digital Tags Banner
Product Features:
1.Horizontal, goods shelf mounted
2.Best view angle and high light transmittance
3.Wonderful uniformity, good color mixture and high brightness
4. High refresh rate, high Precision
5. Effective and uniform heat dissipation
6. Long lifespan: 100 000Hours,it could be used for 22 years if run at 12 hours a day, 7 days a week
7. With management content software to remote control every screens,supports USB plug and play as well.
8. Application: Shopping mall, airport, hotel, restaurant, store, supermarkets ,etc
9. Installation: Indoor, Waterproof IP31
Specifications：
| Pixel pitch(mm) | 1.5 | 1.5 | 1.875 | 1.875 | ||||||||
| Usage | Shelf LED | Head LED(on the top of shelf) | Shelf LED | Head LED(on the top of shelf) | ||||||||
| LED type(SMD) | 1010 | 1010 | 1415 | 1415 | ||||||||
| Pixel Density(dot/㎡) | 409600 | 409600 | 284500 | 284500 | ||||||||
| Best View Distance | >1.5m | >1.5m | >2m | >2m | ||||||||
| Screen size(W*H) mm | 600x60 | 900x60 | 1200x60 | 600x240 | 900x240 | 1200x240 | 600x60 | 900x60 | 1200x60 | 600x240 | 900x240 | 1200x240 |
| Screen Resolution(dot) | 384x38 | 576x38 | 768x38 | 384x154 | 576x154 | 768x154 | 320x32 | 480x32 | 640x32 | 320x128 | 480x128 | 640x128 |
| Brightnees(nits) | >1200 | |||||||||||
| View angle | H: 160° / V: 160° | |||||||||||
| Gray scale | 16 bit | |||||||||||
| Refresh Rate | >3840Hz | |||||||||||
| Diving Mode | 1/27 Scan | 1/27 Scan | 1/32 Scan | 1/32 Scan | ||||||||
| Lifespan(H) | >100 000 | |||||||||||
| Power Comsumption(max.) | 760w/㎡ | 760w/㎡ | 800w/㎡ | 800w/㎡ | ||||||||
| Power Comsumption(ave.) | 255w/㎡ | 255w/㎡ | 261w/㎡ | 261w/㎡ | ||||||||
Environment：
| Working Temperature | –20℃ ～ + 60℃ | |||||||||||
| Working Humidity | 10% ～90% | |||||||||||
| Storage Temperature | –35℃ ～ + 85℃ | |||||||||||
| Storage Humidity | 10% ～90% | |||||||||||
Material：
| Cabinet | Metal Iron | |||||||||||
| Maintenance | Back-side access | |||||||||||
| LED chip | Nationstar / King light | |||||||||||
| Power supply | Meanwell / G-energy | |||||||||||
| Controlling system | Novastar / Linsn / Colorlight | |||||||||||
| Installation | Indoor / Floor standing | |||||||||||
Service:
Can provide samples for testing and approval.
Can speed up production to meet customers' market demand.
Installation instructions, customized design or colors are available.
Could print customers' LOGO on the frame with digital file from clients.
Warranty is 2 years, with extra spare parts for maintenance.
Assist customers to purchase with any other concerning products.
Why choose us?
The skilled manufacturer, experienced engineers and strict QC have earned a good reputation.
Advanced production equipments.
1Year Products quality guaranteed.
A professional sales team to guarantee samples quality, mass-production shipments and After-sales service.
Production capacity is the guarantee.
Shipping and payment:
Trade Terms: EXW,FOB,or CIF
Payment terms: By T/T or Western Union,50% deposit and 50% balance before shipment.
Lead-time: Around 7days depend on order quantity.
MOQ: Sample order is accepted.
Package: Bubble bag + standard export carton to prevent any damage in transit.
Shipping: by international express as UPS, TNT, DHL, FEDEX, by air or by Sea.
LED Workshop
Exhibition
Certificate
¿Cuál es el principio de funcionamiento de la pantalla digital LED para interiores? La pantalla digital LED para interiores está hecha de perlas de lámpara LED, la corriente y el voltaje son muy bajos y el cuerpo humano no se daña con la radiación.¿Cuál es el principio de funcionamiento de la pantalla digital LED para interiores?
